Type A pillar for road bridge cod. 1202

€7,00

Type A pillar for road bridge cod. 1202

€7,00

SKU: 1202.PLA.H44

Select Street level height

44 mm

50 mm

62mm

Personalized

Reproduction in N scale (1:160) faithful to the original of a pillar with 3 piles which is part of a classic Italian concrete bridge of the current era.

The pillar has 6 hooks on each side and is suitable for the bridge with 6 H beams code 1202

Perfectly reproduced and sized thanks to FDM 3D printing technology with concrete gray like PLA material, it is supplied with a cap and 3 piles to glue.

Available in the following sizes:

Height from road level: 44 mm (equivalent to real life about 7.00 meters) and free height of 31.5 mm (equivalent to real life about 5.00 meters)
Height from road level: 50 mm (equivalent to real life about 8.00 meters) and free height of 37.5 mm (equivalent to real life about 6.00 meters)
Height from the floor road: 62 mm (equivalent to real life about 10.00 meters) and free height of 49.50 mm (equivalent to real life about 8.00 meters)
Road surface height customizable from a minimum of 38 mm to a maximum of 62 mm (with free height always 12.5 mm less)

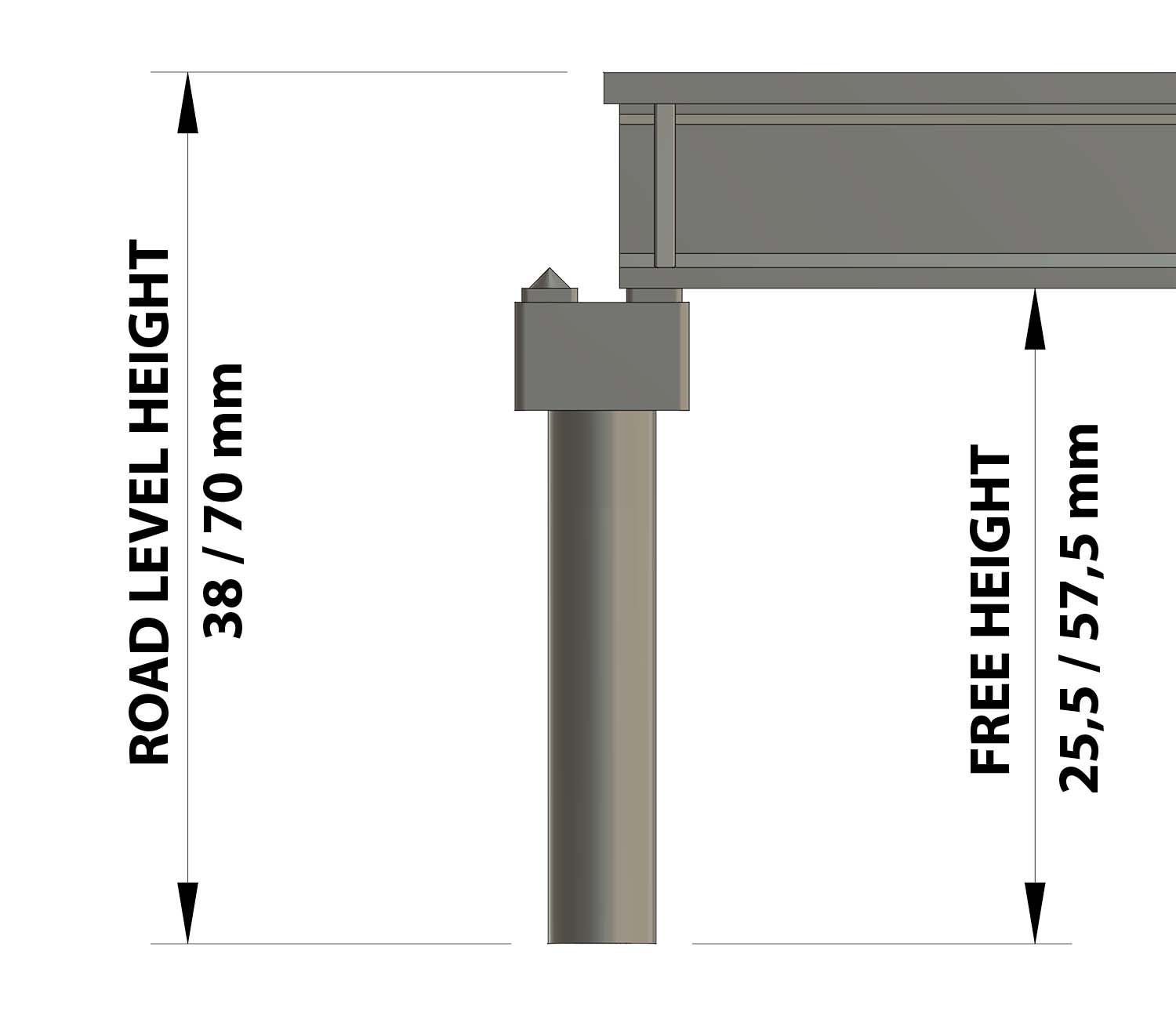

Please refer to the dimension drawing below to check the measurements.

The item can already be used raw or can be easily worked and painted for an optimal finish.

Additional Information

Finish of the bioPLA material

Assembly
Where assembly between pieces is required, we recommend using cyanoacrylate glue for a quick and strong bond (Glue 21, available in the Accessories category, is perfect). We recommend lightly sanding the parts to be glued.

Sanding
Normally not necessary, but if you want to reduce the streaking effect, you can roughen with 240/320 grit sandpaper and then work your way up to finer grits, up to 1000 for the final sanding. We recommend wetting the sandpaper or wetting the piece with cold water to avoid overheating the surface, as the PLA material could become brittle at high temperatures.
The use of power tools for sanding is not recommended.

Painting
Use acrylic paints in the desired color with a matte finish (for concrete, RAL 7035 gray). For a more uniform surface, we recommend using an airbrush or spray can. You can apply multiple coats until you're satisfied, letting them dry between coats.
