Abutment for road bridge cod. 1202

SKU: 1202.SPL.H44
Select Street level height

Reproduction in N scale (1:160) faithful to the original of the terminal (abutment) which is part of a classic Italian concrete bridge of the current era.

The abutment has 6 hooks and is suitable for the bridge with 6 H beams code 1202

Perfectly reproduced and sized thanks to FDM 3D printing technology with concrete gray like PLA material, it is supplied in a single piece ready for installation.

Available in the following sizes:

  • Height from road level: 44 mm (equivalent to real life about 7.00 meters) and free height of 31.5 mm (equivalent to real life about 5.00 meters)
  • Height from road level: 50 mm (real life equivalent approximately 8.00 metres) and free height of 37.5 mm (real life equivalent approximately 6.60 metres)
  • Height from the floor road: 62 mm (equivalent to real life about 10.00 meters) and free height of 49.5 mm (equivalent to real life about 8.00 meters)
  • Road surface height customizable from a minimum of 38 mm to a maximum of 70 mm (free height always 12.5 mm less)

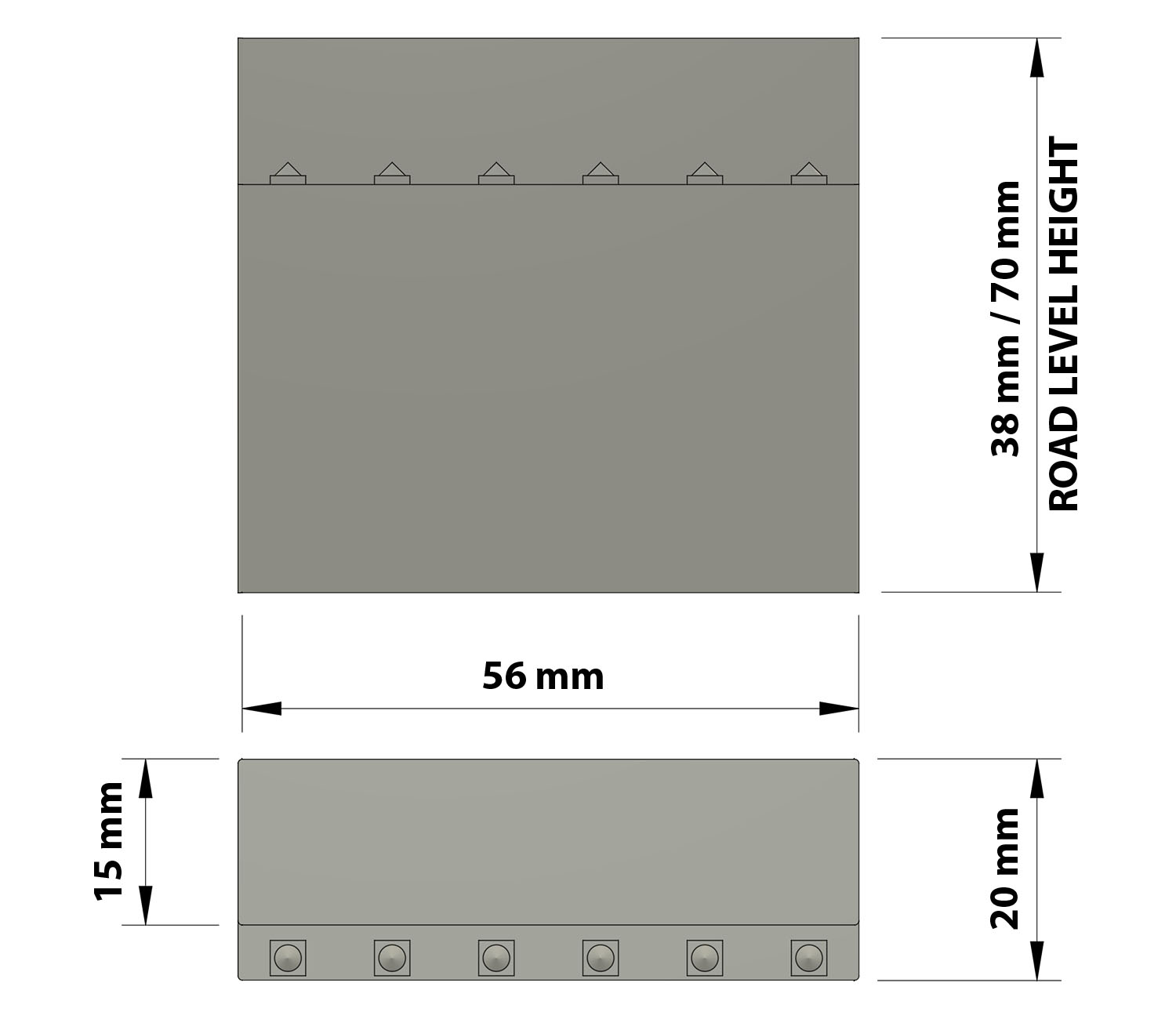

Please refer to the dimension drawing below to check the measurements.

The item can already be used raw or can be easily worked and painted for an optimal finish.

Finish of the bioPLA material

Where assembly between the pieces is required, we recommend using cyanoacrylate glue for a quick and resistant fixing. We recommend lightly sanding the parts to be glued.

To mitigate the streaking effect, you can roughen with 180/240 grit sandpaper and continue with finer grits, up to 1000 for the final sanding. It is recommended to moisten the sandpaper or wet the piece with cold water to avoid overheating the surface too much, as the PLA material could knead at high temperatures.
The use of power tools for sanding is not recommended.

Use acrylic products of the desired color with a matt finish (for cement, gray RAL 7035). To obtain a more uniform surface, the use of an airbrush or spray can is recommended. You can apply multiple coats until you are satisfied, leave to dry between coats.
