Pillar for Modena N railway viaduct

€8,00

Pillar for Modena N railway viaduct

€8,00

SKU: 1201.PLS.H36

Select track surface height

36mm

50 mm

60 mm

Personalized

Reproduction in N scale (1:160) faithful to the original of the concrete pillar of the "Modena" viaduct used in real life on the Milan-Bologna high-speed route and in the new variant of the historic route near Modena.

Perfectly reproduced and sized thanks to FDM 3D printing technology with concrete gray like PLA material, it is supplied in 2 pieces, column and stack to be glued.

Available in the following sizes:

Height from the track surface: 36 mm (equivalent to life approximately 5.70 metres)
Height from the track surface : 50 mm (equivalent to life approximately 8.00 metres)
Height from track surface : 60 mm (equivalent to real life approximately 9.60 metres)
Customizable from a minimum of 36 mm to a maximum of 80 mm

The item can already be used raw or can be easily worked and painted for an optimal finish.

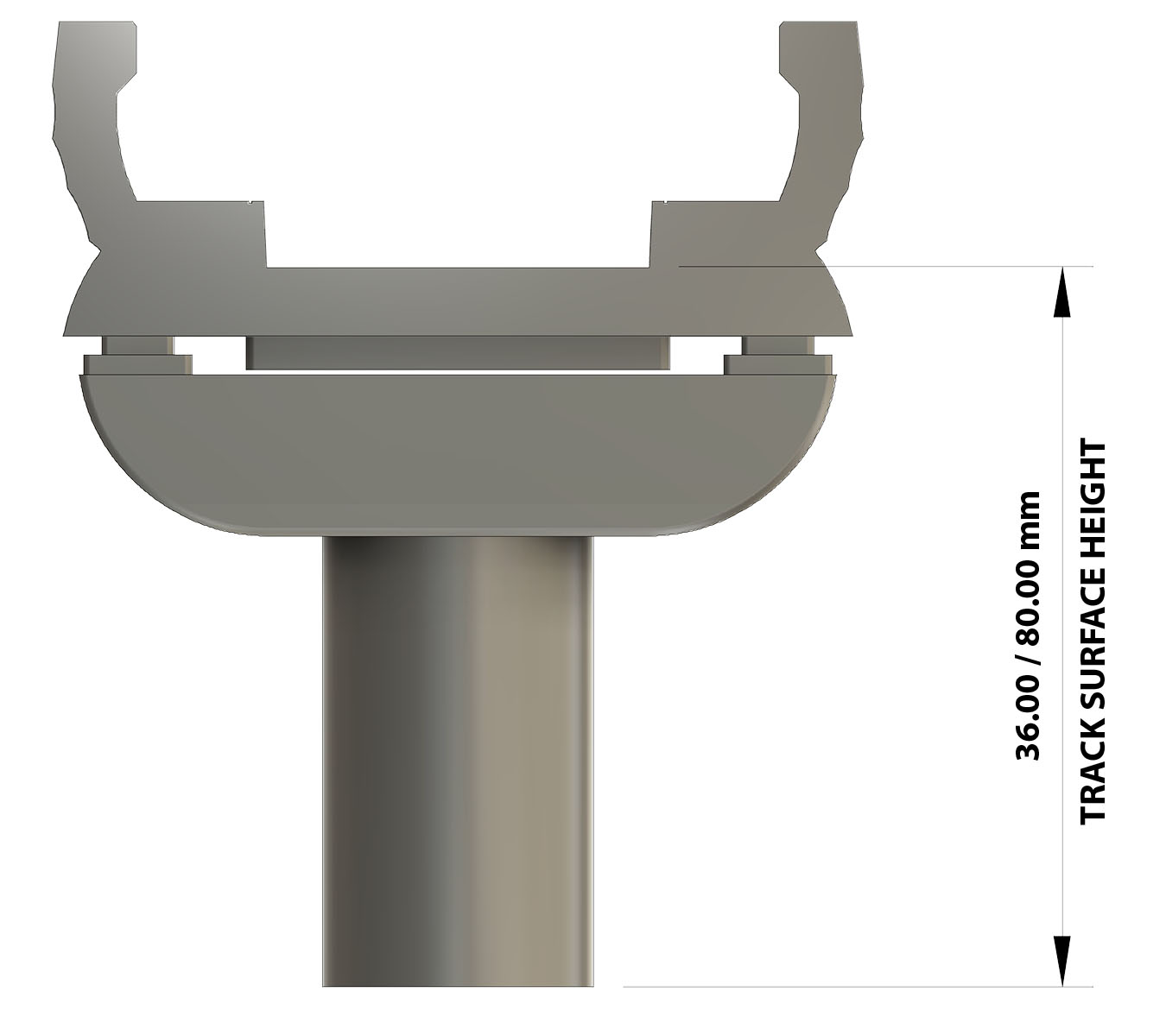

Please check the track height as per the dimensioned drawing.

Additional Information

Finish of the bioPLA material

Assembly
Where assembly between pieces is required, we recommend using cyanoacrylate glue for a quick and strong bond (Glue 21, available in the Accessories category, is perfect). We recommend lightly sanding the parts to be glued.

Sanding
Normally not necessary, but if you want to reduce the streaking effect, you can roughen with 240/320 grit sandpaper and then work your way up to finer grits, up to 1000 for the final sanding. We recommend wetting the sandpaper or wetting the piece with cold water to avoid overheating the surface, as the PLA material could become brittle at high temperatures.
The use of power tools for sanding is not recommended.

Painting
Use acrylic paints in the desired color with a matte finish (for concrete, RAL 7035 gray). For a more uniform surface, we recommend using an airbrush or spray can. You can apply multiple coats until you're satisfied, letting them dry between coats.
